Specifications

Product Type	Fuse switch disconnector
Brand	ABB
Series	EasyLine XLP
Application	Fuse switch disconnection and protection in low-voltage distribution
Power Loss	24 W
Rated Current	630 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	50 kA rms
Rated Voltage	690 V AC
No. of Poles	3P
Connection/Termination	Cable clamp / bridge clamps
Mounting	Base mount
Size Code	NH3
Depth	330 mm
Height	142 mm
Weight	4.75 kg
Width	250 mm
IP Rating	IP30
Standards and Approvals	IEC 60947-3

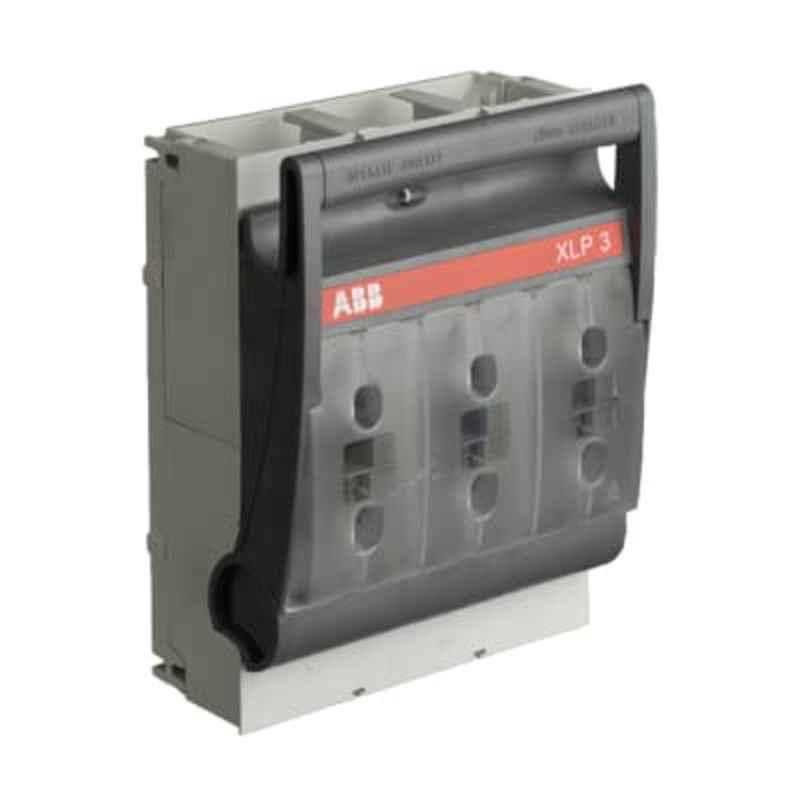

ABB XLP3-6M12 Disconnects Fuse 3-P 630A 500/690VAC IP20 IP30
