Specifications

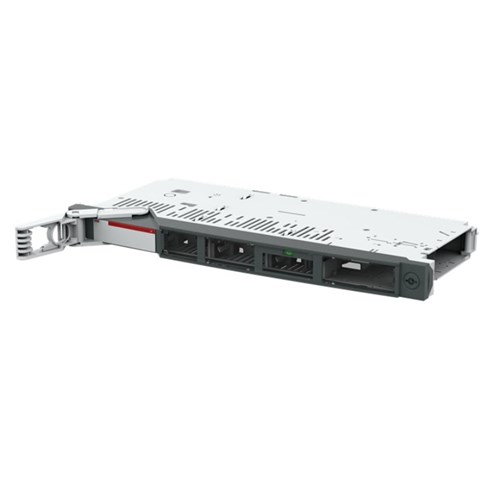

Product Type	Fuse Switch Disconnector
Brand	ABB
Cable Entry	Side
Control Element Position	Front Side
Degree of Protection	IP41
Depth	335 mm
Electrical Connection	Bolt
Fixing Centres	185 mm
Fuse Size	NH00
Height	50 mm
Mounting Type	Busbar
Number of Poles	3
Power Loss	33 W
Rated Current	160 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	8 kV
Rated Power	33 W
Rated Short Circuit Current	120 kA
Rated Voltage	690 VAC
Standards and Approvals	IEC 60947-3, RoHS, REACH, CE
Suitable For Use With	NH00 Base
Thickness	10 mm
Weight	3.79 kg
Width	590 mm
