Specifications

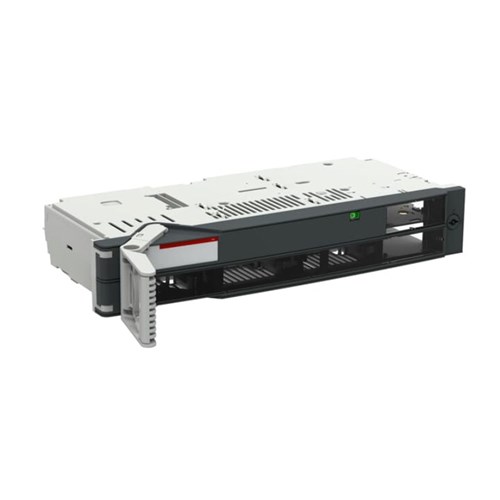

Product Type	Switch disconnector fuse
Brand	ABB
Series	SlimLine XR Gold
Application	Busbar-mounted switch disconnector fuse for low-voltage distribution
Power Loss	70 W
Rated Current	250 A
Rated Voltage	690 V AC
No. of Poles	3P
Connection/Termination	Bolt
Fixing Centres	50 mm
Mounting	5 mm Busbar mounted
Size Code	NH1
Depth	100 mm
Height	335 mm
Weight	6.79 kg
Width	590 mm
IP Rating	IP41 front
Standards and Approvals	IEC 60947-3
