Specifications

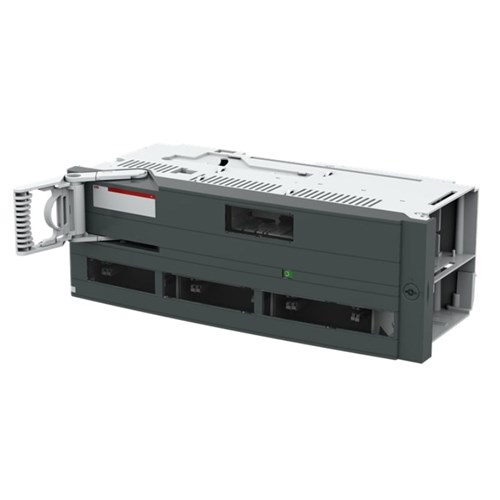

Product Type	Fuse Switch Disconnector
Brand	ABB
No. of Poles (Total)	3P
Rated Current (In)	630 A
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	1 kV
Rated Operational Voltage (Ue)	690 V AC
Power Loss	at Rated Load 245 W
Rated Frequency	50/60 Hz
Rated Voltage	690 V AC
Terminal Type	Bolt
Fuse Size	NH3
Fuse Protected Short Circuit Making (kArms)	100
Fuse Protected Short Circuit Withstand (kArms)	100
Rated Operational Current AC-22B (Ie)	(690 V) 500 A
Rated Operational Current AC-23B (le)	(690 V) 500 A
Busbar Dimensions	Thickness 5 mm
Distance Between Phases	50 mm
Electrical Durability	1000
Mechanical Durability	5000
Fuse System	DIN
Depth	335 mm
Height	200 mm
Weight	15.51 kg
Width	590 mm
IP Rating	IP41
Standards and Approvals	IEC60947-3
