Specifications

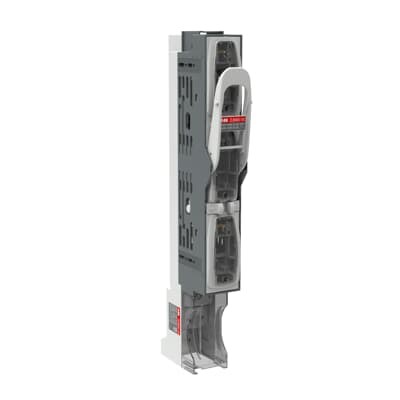

Product Type	Fuse switch disconnector
Brand	ABB
Series	InLine II
Application	Utilities, infrastructure, manufacturing
Rated Current (In)	160 A
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	800 V AC
Suitable For	NH00 Base
Electrical Connection	Bolt
Power Loss	33.6 W
Rated Current	160 A
Rated Short Circuit Current	120 kA
Rated Voltage	800 VAC
Fuse Size	NH00
No. of Poles	3
Cable Entry	Bottom
Mounting Type	Busbar
Depth	124 mm
Height	409 mm
Weight	1040 g
Width	49 mm
IP Rating	IP30
Standards and Approvals	IEC 60947-3, CE
