Specifications

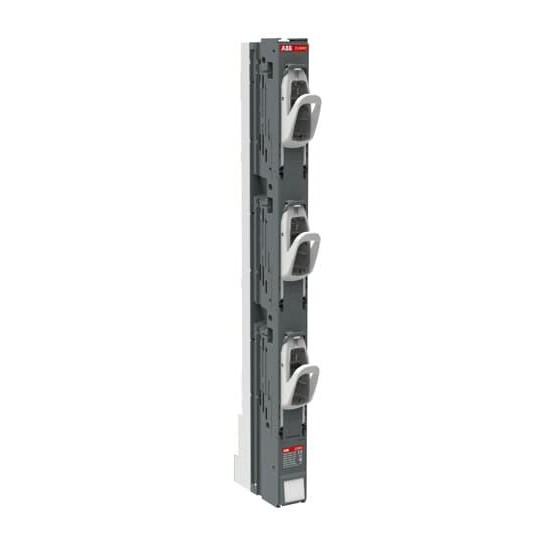

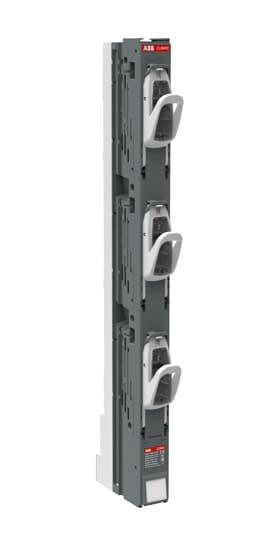

Product Type	Strip Fuse Switch
Brand	ABB
Series	ZLBM00
Max. Rated Operation AC Voltage (Ue)	1000 V AC
Rated Current (In)	160 A
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	1000 V AC
Rated Permanent Current (Iu)	160 A
Power Loss	33.6 W
Rated Frequency	50 / 60 Hz
No. of Poles	3P
Depth	169 mm
Height	662 mm
Weight	1.75 kg
Width	48.5 mm
IP Rating	IP30
