Specifications

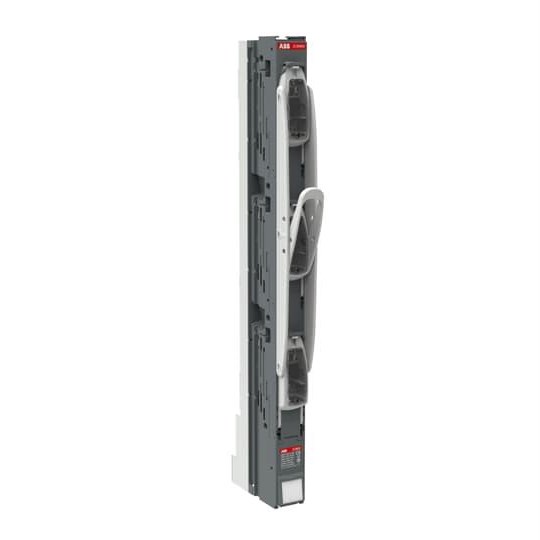

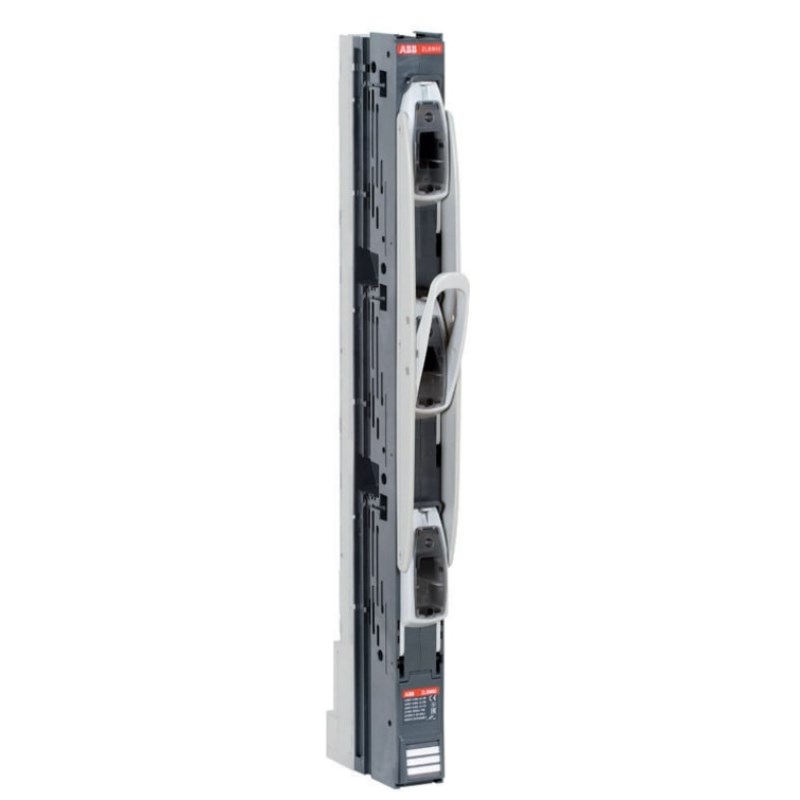

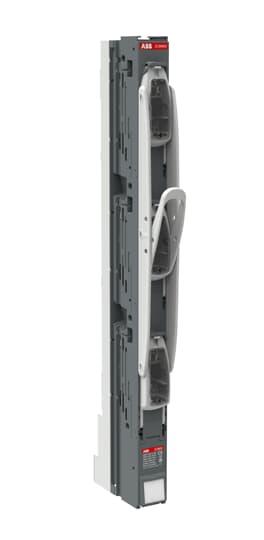

Product Type	Fuse switch disconnector
Brand	ABB
Series	InLine II
Application	Manufacturing, commercial facilities, utilities
Rated Current (In)	160 A
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	1000 V AC
Rated Operational Current AC21-A (Ie)	160 A
Rated Operational Current AC22-A (Ie)	160 A
Rated Operational Current AC23-A (Ie)	160 A
Suitable For	NH00 Base
Power Loss	33.6 W
Rated Current	160 A
Rated Voltage	1000 VAC
Terminal Type	Bolt
Fuse Size	NH00
No. of Poles	3
Handle Type	1P
Tightening Torque	10 N-m
Depth	181 mm
Height	662 mm
Weight	1820 g
Width	48.5 mm
IP Rating	IP30
Standards and Approvals	IEC 60947-3, CE
