Specifications

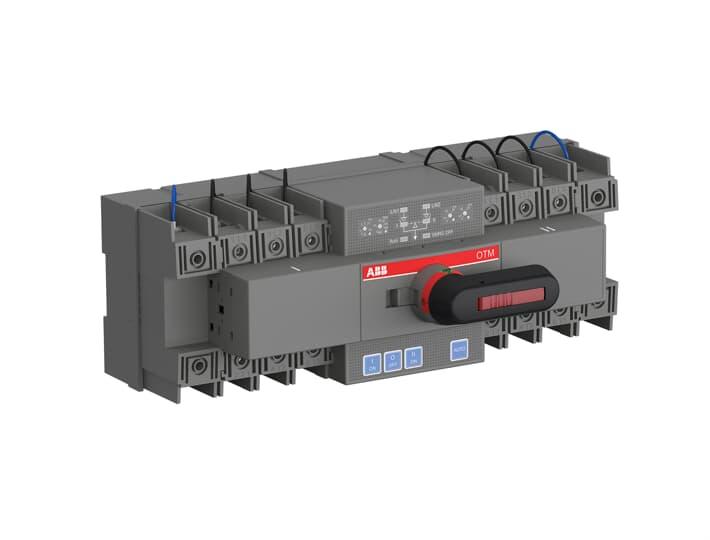

Product Type	Automatic Transfer Switch
Brand	ABB
Air Thermal Current	125 A
Controller Type	21D
Degree of Pollution	IP3
Degree of Protection	IP20
Fourth Pole Type	Switched-Simultaneous Function
Handle Type	Direct Mounted
Height	103 mm
Length	131 mm
Line Terminals Position	Supplies on Top-Load on Bottom
Mode of Operation	Front
Motor Rated Voltage	380-415 VAC
Mounting Type	Base, DIN Rail
Number of Poles	4
Padlockable	Padlockable in O-position
Power Loss	6.3 W
Rated Current	125 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	800 V
Rated Power	45 kW
Rated Voltage	380-415 V
Rated Withstand Current	2.5 kA
Terminal Type	Screw Clamp
Tightening Torque	6 N-m
Transition Type	Open
Weight	2.11 kg
Width	286 mm
