Specifications

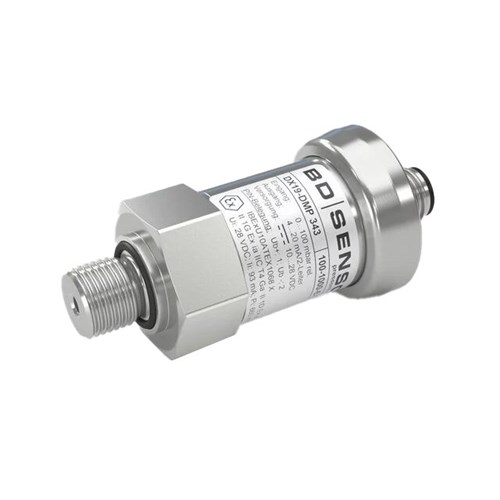

Product Type	Industrial Pressure Transmitter
Brand	BD SENSORS
Series	DMP 343
Accuracy	>100 mbar, 0.35% FSO
Application	Plant and machine engineering. Heating and air conditioning.
Electrical Connection	M12 x 1 Male Plug (4 Pin)
Mechanical Stability	Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/2 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles.
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	400 mbar
Response Time	<=10 ms
Seal Material	FKM
Shock Resistance	500 g/1 ms
Standards and Approvals	CE, cULus, IEC, REACH, RoHS
Version	Standard
