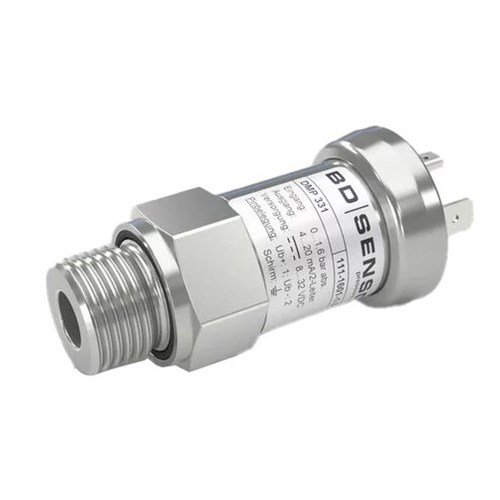

BD Sensors 1101000E5M103001000 Industrial Pressure Transmitter

Product Code: 1101000E5M103001000

  • Stainless steel build for durability
  • 4-20 mA output for reliable data
  • Operates in -40 to 125°C range
  • CE, cULus, REACH, RoHS certified
  • Withstands shocks up to 500 g/1 ms
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Industrial Pressure Transmitter
Brand BD SENSORS
Series DMP 331
Accuracy <0.4 bar, 0.5% FSO
Application Plant and machine engineering. Environmental engineering (water - sewage - recycling). Energy industry.
Electrical Connection M12 x 1 Male Plug (4 Pin)
Mechanical Stability Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection G1/4 in DIN 3852
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Seal Material FKM
Shock Resistance 500 g/1 ms
Standards and Approvals CE, cULus, REACH, RoHS
Version Standard

Description

<p>The DMP 331 Stainless Steel Sensor is a reliable choice for those in need of precise pressure measurement in industrial and commercial applications. This sensor, part of the well-regarded DMP 331 series, offers a robust solution with its stainless steel construction, ensuring durability and resistance to harsh environments.</p><p>One of the standout features of this sensor is its output type. It utilizes a standard 4-20 mA output signal, making it compatible with most control systems and allowing for seamless integration into existing setups. The accuracy level is impressive as well, with less than 0.4 bar deviation and an overall accuracy of 0.5% Full Scale Output (FSO), ensuring precise readings that you can trust.</p><p>Designed to operate across a wide temperature range from -40 to 125 degrees Celsius, the DMP 331 sensor is suitable for various challenging conditions without compromising performance. Its adherence to multiple standards and approvals like CE, cULus, REACH, and RoHS underscores its commitment to safety and environmental compliance.</p><p>In terms of durability under stress, this sensor boasts shock resistance up to 500 g/1 ms. Its mechanical life extends up to ten million operations—highlighting its long-lasting reliability even in demanding applications.</p><p>For installation flexibility, the mechanical connection follows the G1/4 inch DIN 3852 standard while electrical connections are facilitated through an M12 x 1 male plug featuring four pins. This ensures straightforward setup and maintenance procedures.</p><p>Additionally, the seal material used here is FKM—a fluorocarbon rubber known for excellent chemical resistance—which further enhances the sensor&amp;#39;s resilience against aggressive media often encountered in industrial settings.</p><p>Overall, if you&amp;#39;re seeking a dependable pressure sensing solution that combines precision with robustness across diverse operating conditions—the DMP 331 Stainless Steel Sensor presents itself as a fitting candidate worthy of consideration by professionals within Australia’s technical community.</p>
