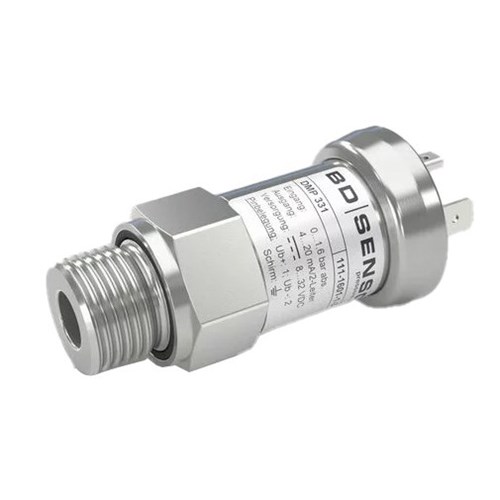

BD Sensors 110160213100N401000 Industrial Pressure Transmitter

Product Code: 110160213100N401000

  • Stainless steel construction for durability
  • 4-20 mA output for reliable performance
  • Wide temp range: -40 to 125°C
  • High shock resistance: 500 g/1 ms
  • CE, cULus, REACH, RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Industrial Pressure Transmitter
Brand BD SENSORS
Series DMP 331
Accuracy >=0.4 bar, 0.35% FSO
Application Plant and machine engineering. Environmental engineering (water - sewage - recycling). Energy industry.
Electrical Connection Male and Female Plug ISO 4400
Mechanical Stability Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection 1/2 in NPT
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure 16 bar
Response Time <=10 ms
Seal Material FKM
Shock Resistance 500 g/1 ms
Standards and Approvals CE, cULus, REACH, RoHS
Version Standard

Description

<p>The DMP 331 Stainless Steel Sensor is a robust and reliable solution for industrial and commercial applications, designed to meet the demanding needs of Australian technical environments. This sensor stands out with its precision engineering, providing an output type of 4-20 mA, ensuring seamless integration into various control systems.</p><p>One of the key features of the DMP 331 is its impressive accuracy, maintaining a performance level at or above 0.35% Full Scale Output (FSO) for pressures greater than or equal to 0.4 bar. This makes it highly suitable for applications where precise measurement is critical.</p><p>Operating in extreme conditions is not a challenge for this sensor, as it functions efficiently within a broad operational temperature range from -40 to 125 degrees Celsius. This adaptability ensures that the sensor remains reliable in both harsh cold and intense heat environments.</p><p>In terms of compliance, the DMP 331 meets several crucial standards and approvals including CE, cULus, REACH, and RoHS certifications. These certifications underscore its quality and safety credentials, making it a trusted choice for professionals adhering to stringent industry regulations.</p><p>Durability is another hallmark of this product; with shock resistance rated at an impressive 500 g/1 ms and boasting a mechanical life capable of enduring up to ten million operations. Such resilience assures users that they can rely on this sensor over extended periods without frequent replacements or maintenance concerns.</p><p>The DMP 331 also accommodates high-pressure scenarios with a rated pressure capacity of up to 16 bar. Its mechanical connection via a standard 1/2 inch NPT fitting allows straightforward installation into existing infrastructure setups.</p><p>For electrical connections, this sensor utilizes ISO 4400 male and female plug configurations which facilitate quick and secure connectivity options essential for maintaining system integrity under operational stress.</p><p>With an exceptionally fast response time capped at less than or equal to ten milliseconds, the DMP 331 provides real-time data processing capabilities crucial in dynamic industrial processes where timely information can make significant differences in decision-making efficiency.</p><p>Additionally, constructed with FKM seal material ensures excellent chemical compatibility across diverse application settings while safeguarding against potential leaks or environmental ingress that may compromise functionality.</p><p>Overall, the DMP 331 Stainless Steel Sensor offers unparalleled reliability through its combination of high accuracy measurements robust construction standards adherence rapid response times extensive lifespan capabilities all tailored towards meeting professional demands effectively within Australia’s diverse industrial landscape.</p>
