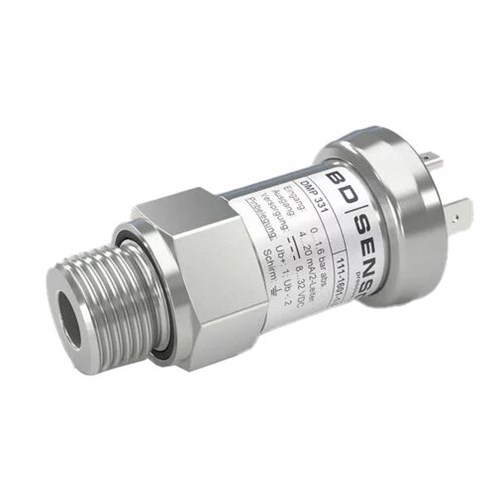

BD Sensors 110S10015M103001000 Industrial Pressure Transmitter

Product Code: 110S10015M103001000

  • Stainless steel construction for durability
  • 4-20 mA output for reliable signal transmission
  • Operates in extreme temps: -40 to 125°C
  • CE, cULus, REACH, RoHS compliant
  • High shock resistance: 500 g/1 ms
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Industrial Pressure Transmitter
Brand BD SENSORS
Series DMP 331
Accuracy <0.4 bar, 0.5% FSO
Application Plant and machine engineering. Environmental engineering (water - sewage - recycling). Energy industry.
Electrical Connection M12 x 1 Male Plug (4 Pin)
Mechanical Stability Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection G1/4 in DIN 3852
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Seal Material FKM
Shock Resistance 500 g/1 ms
Standards and Approvals CE, cULus, REACH, RoHS
Version Standard

Description

<p>The DMP 331 Stainless Steel Sensor is a robust and reliable choice for professionals in industrial and commercial sectors. This sensor, part of the well-regarded DMP 331 series, offers precise measurement capabilities with an output type of 4-20 mA, ensuring compatibility with a wide range of control systems. Its accuracy stands at less than 0.4 bar with a full-scale output (FSO) tolerance of just 0.5%, making it suitable for applications where precision is key.</p><p>Designed to withstand extreme conditions, the DMP 331 operates efficiently within a temperature range from -40 to 125 degrees Celsius. This resilience is further supported by its shock resistance rating of up to 500 g/1 ms, enabling it to maintain performance even in environments subject to vibrations or sudden impacts.</p><p>With certifications including CE, cULus, REACH, and RoHS compliance, this sensor meets strict international standards for safety and environmental impact. The mechanical durability is notable with a mechanical life rated at ten million operations—illustrating its long-term reliability in demanding settings.</p><p>Installation is straightforward thanks to the G1/4 inch DIN 3852 mechanical connection and an M12 x 1 male plug (4 pin) electrical connection. These standard fittings facilitate seamless integration into existing systems without the need for specialized adapters or connectors.</p><p>The seal material used is FKM (fluoroelastomer), known for its excellent resistance to heat and chemicals—a crucial feature when dealing with harsh substances or high-temperature processes.</p><p>Overall, the DMP 331 Stainless Steel Sensor combines durability with high performance, making it an ideal component for those seeking dependable operation under challenging conditions.</p>
