Specifications

Product Type	Pressure Transmitter
Brand	BD SENSORS
Series	DMP 334
Accuracy	0.35% FSO
Application	Plant and machine engineering. Commercial vehicles and mobile hydraulics.
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 11 msec according to DIN EN 60068-2-27.
Mechanical Connection	M20 x 1.5 Internal Thread
Mechanical Life	1000000 Operations
Operational Life	10 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	0-10 V
Rated Pressure	2200 bar
Response Time	< 5 ms
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard (adjustable) [Not possible in combination with IS-version, compact field housing and cable outlet with PVC cable]

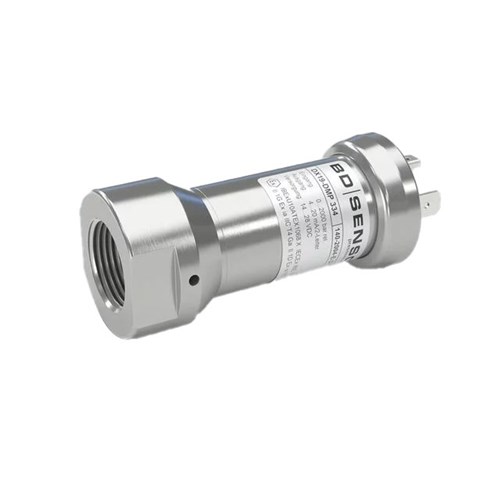

BD Sensors 140220433100D282041 Pressure Transmitter
