Specifications

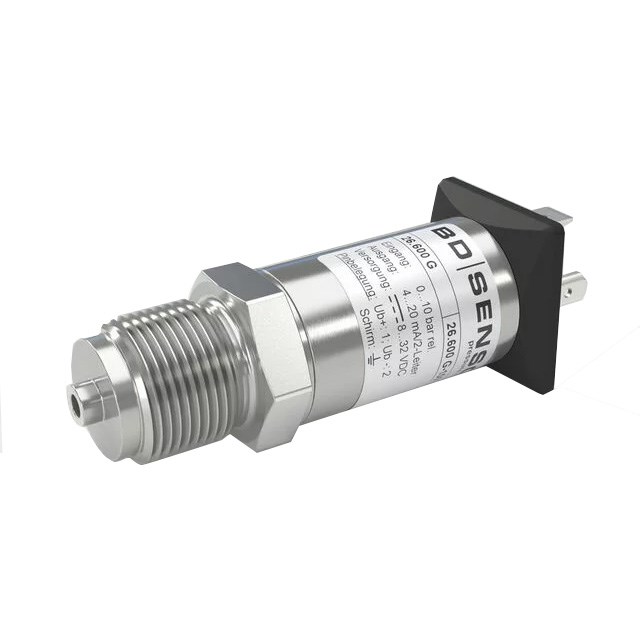

Product Type	Pressure Transmitter
Brand	BD SENSORS
Series	26.600 G
Accuracy	-1-0 bar 1.0% FSO
Application	Mechanical and plant engineering. General industrial applications.
Degree of Protection	IP65
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	Vibration: 10 g, 25 Hz ... 2 kHz according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/4 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	0-10 V
Rated Pressure	60 bar
Response Time	<=3 ms
Seal Material	FKM
Shock Resistance	500 g/1 ms
