Specifications

Product Type	Pressure Transmitter
Brand	BD SENSORS
Series	DMK 351P
Accuracy	0.35% FSO
Application	Food industry. Chemical and petrochemical industry. Preferred used for paint and varnish, viscous and pasty media.
Diaphragm Material	Ceramic Al2O3 96%
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	Vibration: 10 g RMS (20 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1-1/2 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	10 bar
Response Time	380 ms
Seal Material	FKM
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard

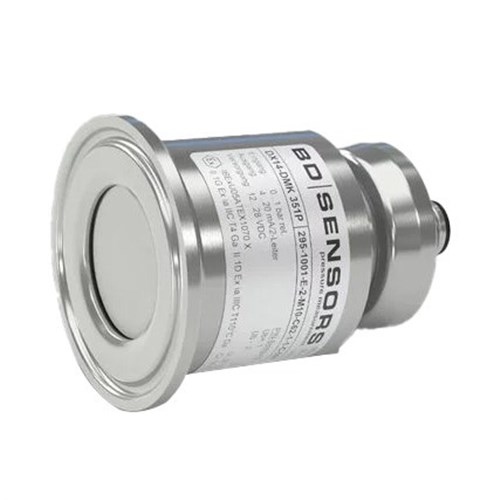

BD Sensors 295100213100M00112000 Pressure Transmitter Ceramic Al2O3 96% Diaphragm
