Specifications

Product Type	Pressure Transmitter
Brand	BD SENSORS
Series	DPT 100
Application	Machine and plant engineering. Environmental technology. Energy production.
Accuracy	>=60 mbar, 0.1% FSO
Electrical Connection	M12 x 1 Male Plug (4 Pin)
Output Type	4-20 mA
Type	Standard
Response Time	10 ms
Mechanical Durability	10000000 Operations
Gasket	PTFE
Housing Material	Aluminium
Material	316L Stainless Steel
Service Life	100 million load cycles
Shock Resistance acc. To IEC/EN 60068-2-27	100 g/1 ms
Vibration Resistance acc. To IEC/EN 60068-2-6	Vibration: 5 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 1 msec according to DIN EN 60068-2-27.
Operating Temperature	-40 to 125 deg C
Standards and Approvals	CE, REACH, RoHS

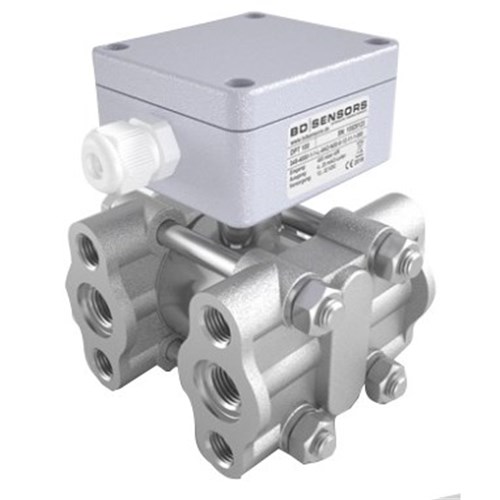

BD Sensors 345250111LM17N20012114000 Pressure Transmitter Aluminium 316L Stainless Steel Diaphragm
