Specifications

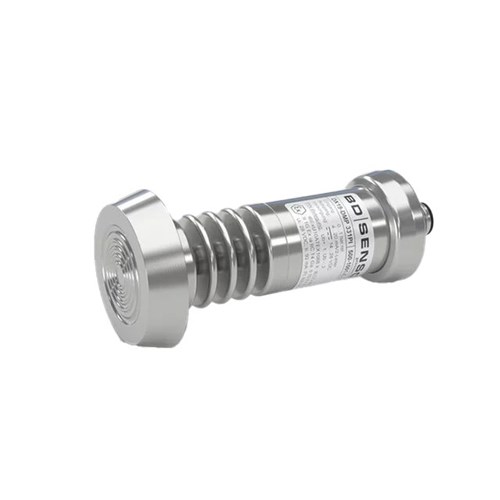

Product Type	Industrial Pressure Transmitter
Brand	BD SENSORS
Series	DMP 331P
Application	Food and beverage related applications. Pharmaceutical industry.
Diaphragm Material	316L Stainless Steel
Electrical Connection	Compact field housing stainless steel 1.4301 (304) [The cup nut has to be mounted by production of pressure transmitter with electrical connection field housing and mechanical connection dairy pipe. The cup nut has to be ordered as separate position.]
Mechanical Stability	Vibration: G 1/2": 20 g RMS (25 ... 2000 Hz), Others: 10 g RMS (25 … 2000 Hz) according to DIN EN 60068-2-6. Shock: G 1/2": 500 g / 1 msec, Others: 100 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	Clamp DN 50/2 in DIN 32676
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles.
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	0 bar
Response Time	< 10 ms
Shock Resistance	500 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
