Specifications

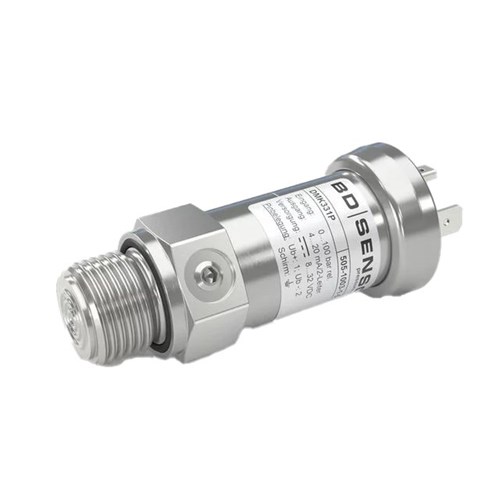

Product Type	Industrial Pressure Transmitter
Brand	BD SENSORS
Series	DMK 331P
Accuracy	0.5% FSO
Application	Food industry. Plant and machine engineering.
Diaphragm Material	316L Stainless Steel
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	Vibration: 20 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/2 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles.
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Response Time	<=10 ms
Seal Material	FKM
Shock Resistance	500 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard
