Specifications

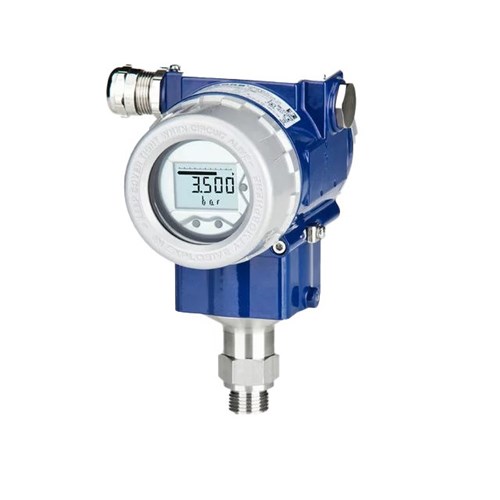

Product Type	Precision Pressure Transmitter
Brand	BD SENSORS
Series	xMP i
Accuracy	0.1% FSO
Degree of Protection	IP67
Electrical Connection	Terminal Clamp Aluminium Housing
Mechanical Connection	G1/2 in DIN 3852
Mechanical Life	10000000 Operations
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Current	25 mA
Response Time	100 ms
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
