Specifications

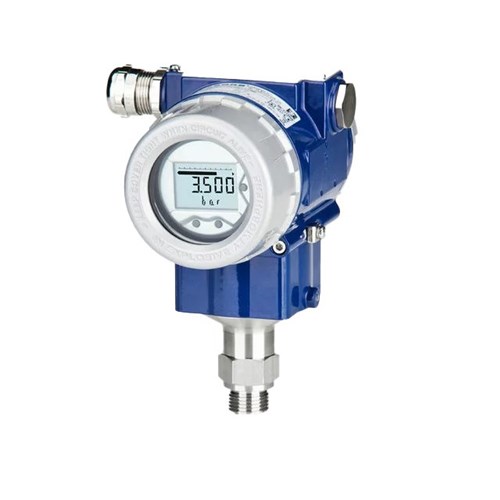

Product Type	Precision Pressure Transmitter
Brand	BD SENSORS
Series	xMP i
Accuracy	0.1% FSO
Application	Preferred areas of use are: Oil and gas industry / chemical and petrochemical industry. Food / pharmaceutical industry.
Degree of Protection	IP67
Design	Aluminium die cast case with display.
Electrical Connection	Terminal Clamp Aluminium Housing
Mechanical Stability	Vibration: 5 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 11 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/2 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Current	25 mA
Response Time	100 ms
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
