Specifications

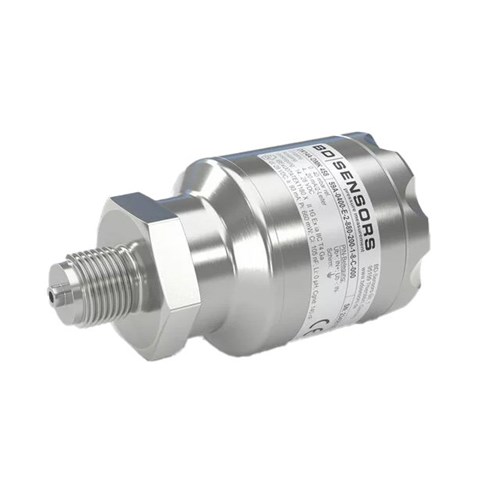

Product Type	Pressure Transmitter
Brand	BD SENSORS
Series	DMK 458
Accuracy	0.25% FSO
Application	Monitoring of pressure during loading and unloading processes. Monitoring of a ship´s position and draught. Use in anti-heeling systems (Water and sea water). Level measurement in ballast and storage tanks.
Diaphragm Material	Ceramic Al2O3 96%
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	4 g (according to DNV: Class B, curve 2 / basis: IEC 60068-2-6)
Mechanical Connection	G1/2 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	0 bar
Response Time	380 ms
Seal Material	FKM
Standards and Approvals	ABS, CE, REACH, RoHS
Version	Standard
