Specifications

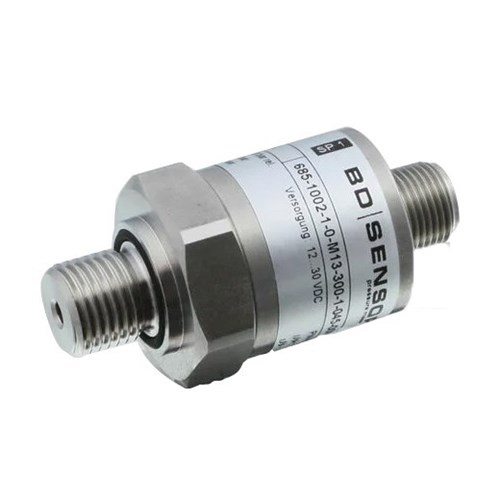

Product Type	Electronic Pressure Switch
Brand	BD SENSORS
Series	DS 6
Application	Mechanical engineering / hydraulics. Measuring, control and process technology.
Degree of Protection	IP67
Diaphragm Material	Ceramic Al2O3 96%
Housing Material	303 Stainless Steel
Mechanical Stability	Vibration: 10 g RMS (20 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 11 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/4 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles.
Operational Temperature	-40 to 125 deg C
Rated Pressure	100 bar
Seal Material	FKM
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard
