Specifications

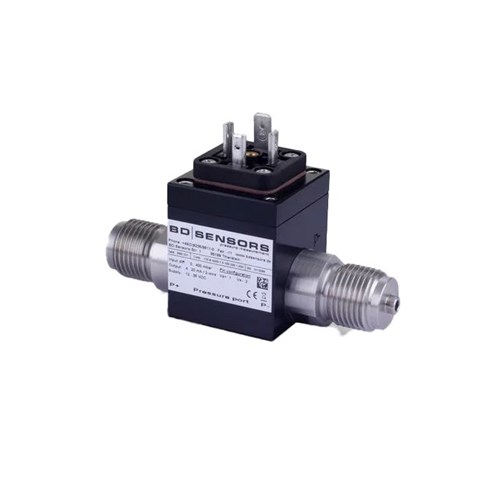

Product Type	Differential Pressure Transmitter
Brand	BD SENSORS
Series	DMD 331
Accuracy	<=1:5, 0.5% FSO
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Connection	G1/2 in EN 837
Mechanical Life	10000000 Operations
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	2 bar
Response Time	< 5 ms
Seal Material	FKM
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, REACH, RoHS
