Specifications

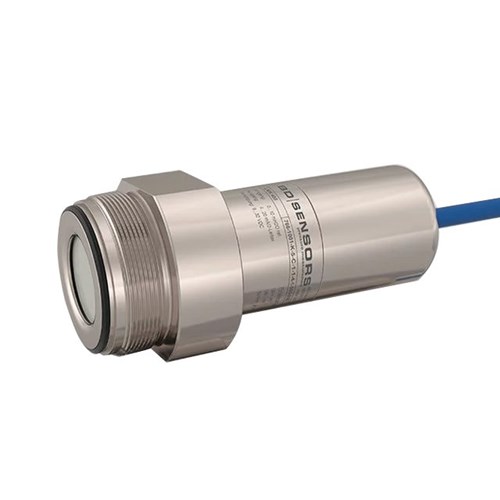

Product Type	Probe
Brand	BD SENSORS
Series	LMK 458
Accuracy	0.25% FSO
Application	Drinking water abstraction. Desalinization plant. Shipbuilding / Offshore ballast tanks. Monitoring of a ship´s position and draught. Level measurement in ballast and storage tanks.
Design	Screw-in version
Diaphragm Material	Ceramic Al2O3 96%
Electrical Connection	TPE-U Cable
Housing Material	316L Stainless Steel
Mechanical Stability	4 g RMS
Operational Temperature	-25 to 125 deg C
Rated Pressure	2.5 mH2O
Response Time	380 ms
Standards and Approvals	ABS, CCS Certificate, CE, cULus, DNV-Approval, LR-Certificate, REACH, RoHS
Version	Standard
