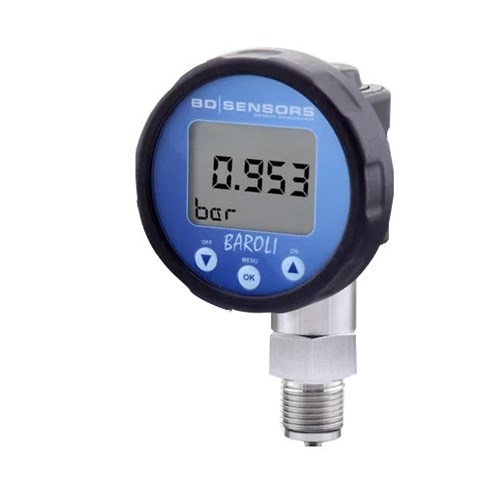

BD Sensors M001002050K0N001121000 Battery Powered Digital Pressure Gauge 316L Stainless Steel

Product Code: M001002050K0N001121000

  • Operates at 3.6 V with high accuracy
  • Durable 316L stainless steel housing
  • IP65 rated for robust protection
  • Wide temp range: -40 to 125°C
  • Complies with CE, cULus, REACH, RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Battery Powered Digital Pressure Gauge
Brand BD SENSORS
Accuracy <=+/-0.25% FSO BFSL
Degree of Protection IP65
Diaphragm Material Ceramic Al2O3 96%
Housing Material 316L Stainless Steel
Mechanical Connection 1/2 in NPT
Mechanical Life 10000000 Operations
Operational Temperature -40 to 125 deg C
Rated Voltage 3.6 V
Seal Material FKM
Standards and Approvals CE, cULus, REACH, RoHS
Vibration Resistance 25-2000 Hz

Description

<p>When selecting equipment for industrial and commercial applications, understanding the specific features and capabilities of a product is crucial. This particular device operates at a rated voltage of 3.6 V, ensuring compatibility with various low-voltage systems while maintaining safety and energy efficiency.</p><p>The accuracy of this instrument is impressive, with a deviation of less than or equal to +/-0.25% Full Scale Output Best Fit Straight Line (FSO BFSL). This precision makes it suitable for tasks requiring high reliability in measurement.</p><p>Constructed from robust 316L stainless steel, the housing material offers excellent corrosion resistance, making it ideal for harsh environments where durability is paramount. Complementing its sturdy construction is an IP65 degree of protection rating, which means the device is dust-tight and protected against water jets from any direction—features that enhance its longevity in challenging settings.</p><p>Operational temperature ranges from -40 to 125 degrees Celsius allow this product to function effectively across diverse environmental conditions without compromising performance. This versatility ensures that it can be deployed in both extreme cold and heat.</p><p>Adhering to several standards and approvals such as CE, cULus, REACH, and RoHS signifies compliance with international safety regulations and environmental directives. These certifications provide users confidence in the product&amp;#39;s quality and sustainability credentials.</p><p>The vibration resistance range between 25-2000 Hz indicates robust performance even under mechanical stress or vibrations commonly found in industrial applications. Its mechanical life extends up to 10 million operations, promising long-term reliability and reducing maintenance needs over time.</p><p>For installation flexibility, the device features a mechanical connection via a 1/2 inch NPT fitting—a common standard facilitating easy integration into existing systems without additional modifications.</p><p>A ceramic Al2O3 96% diaphragm material enhances chemical stability while offering excellent wear resistance—a critical factor when dealing with abrasive or corrosive substances. The seal material made from FKM further contributes to chemical resistance by providing effective sealing under various conditions.</p><p>In summary, this product combines precision engineering with durable materials to deliver dependable performance across multiple industries. Whether you&amp;#39;re working in manufacturing plants or outdoor installations exposed to elements—it stands ready to meet your operational requirements efficiently while adhering strictly to safety standards.</p>
