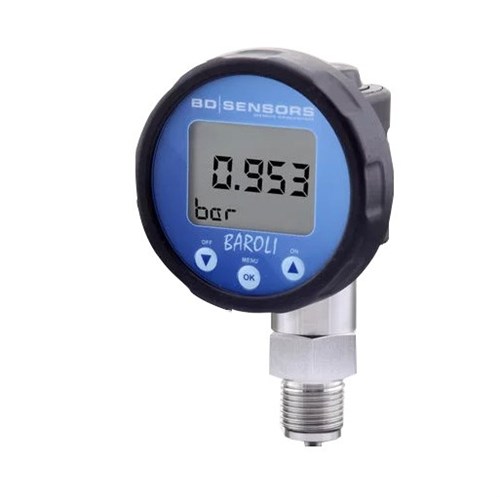

BD Sensors M001601050K0N001121000 Battery Powered Digital Pressure Gauge 316L Stainless Steel

Product Code: M001601050K0N001121000

  • Rated Voltage: 3.6 V
  • High accuracy of <=+/-0.25% FSO BFSL
  • Durable 316L stainless steel housing
  • Wide temp range: -40 to 125°C
  • IP65 protection rating
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Battery Powered Digital Pressure Gauge
Brand BD SENSORS
Accuracy <=+/-0.25% FSO BFSL
Degree of Protection IP65
Diaphragm Material Ceramic Al2O3 96%
Housing Material 316L Stainless Steel
Mechanical Connection 1/2 in NPT
Mechanical Life 10000000 Operations
Operational Temperature -40 to 125 deg C
Rated Voltage 3.6 V
Seal Material FKM
Standards and Approvals CE, cULus, REACH, RoHS
Vibration Resistance 25-2000 Hz

Description

<p>Introducing a robust solution for your industrial and commercial needs, this product is designed to meet rigorous demands with precision and reliability. Operating at a rated voltage of 3.6 V, it ensures efficient performance across various applications. </p><p>Accuracy is paramount in any technical setting, and this product delivers with an impressive accuracy of &amp;lt;=+/-0.25% FSO BFSL, making it suitable for critical operations where precision is non-negotiable. To withstand harsh environments, the housing is constructed from durable 316L stainless steel, offering excellent corrosion resistance.</p><p>The degree of protection is IP65, ensuring that the device is dust-tight and protected against water jets from any direction. This makes it ideal for challenging conditions often encountered in industrial settings.</p><p>With an operational temperature range spanning from -40 to 125 degrees Celsius, this product performs reliably under extreme temperatures—whether in freezing cold or scorching heat—providing flexibility across diverse environments.</p><p>Adhering to stringent standards and approvals including CE, cULus, REACH, and RoHS compliance ensures that this product meets international safety and environmental standards. This compliance provides peace of mind knowing that you&amp;#39;re investing in a safe and environmentally friendly solution.</p><p>Its vibration resistance covers frequencies from 25-2000 Hz which enhances its durability in high-vibration environments such as heavy machinery or transportation sectors. The mechanical life of up to 10 million operations speaks volumes about its longevity and dependability.</p><p>For ease of installation, it features a mechanical connection size of 1/2 inch NPT—a common standard that facilitates straightforward integration into existing systems without needing special adapters or modifications.</p><p>The diaphragm material made from Ceramic Al2O3 96% contributes to its robustness by providing excellent wear resistance while maintaining sensitivity for accurate readings over time. Complemented by an FKM seal material known for its chemical resistance properties especially against oils and fuels—this product stands out as both reliable and versatile.</p><p>This combination of features makes this offering not just another component but a vital part of your system&amp;#39;s efficiency strategy ensuring you get consistent performance day after day even under demanding conditions.</p>
