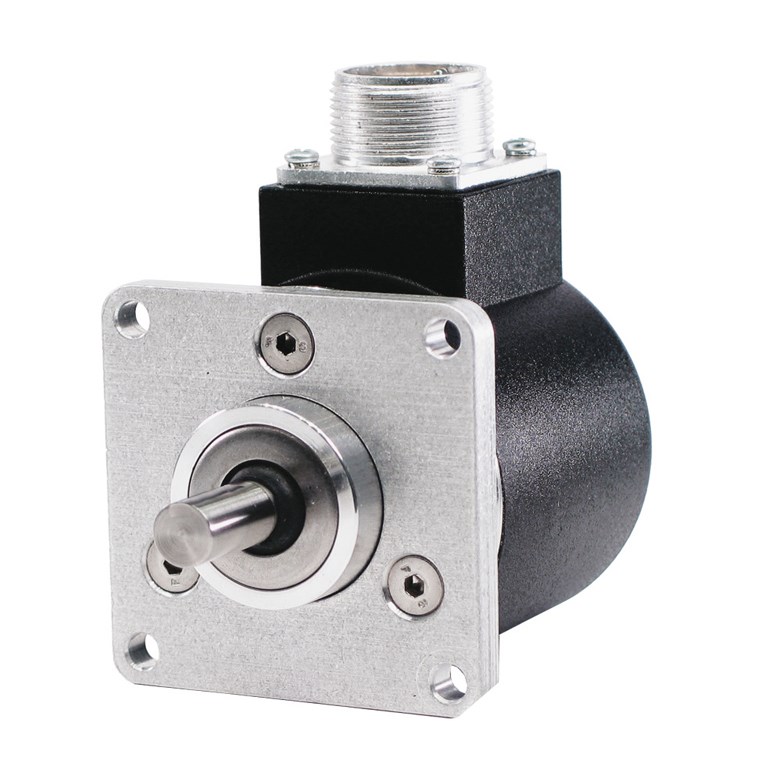

CL Encoder 725310FF15000RHV1SXSTIP50 Heavy-Duty Encoder 725 5-24VDC IP50

Product Code: 725310FF15000RHV1SXSTIP50

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Heavy-Duty Encoder
Brand CL ENCODER
Series 725
Connector Type 10-Pin MS Connector
Degree of Protection IP50
Material 303 Stainless Steel
Mounting Type 63.5 mm Square Flange
Number of Channels 2
Operational Temperature 0 to 70 deg C
Output Type Line Driver
Pulses Per Revolution 5000 PPR
Rated Voltage 5-24 VDC
Shaft Size 10 mm

Documents

IPD Product Catalogue V17
CL ENCODER Datasheet
