Specifications

Product Type	Double Level Terminal Block
Brand	CONNECTWELL
Series	CDL
Application	Control, automation, instrumentation and power distribution wiring where two circuits are required in one terminal width
Function	Double Level Feed Through
Rated Current	32 A
Rated Voltage	800 V
Terminal Type	Screw Clamp Terminal
Cable Cross Section	0.2–4 mm²
Colour	Grey
Material	Polyamide
Mounting	DIN 32/DIN 35/DIN 35-15 Rail
Tightening Torque	0.5 Nm
Depth	57 mm
Height	59.5 mm
Weight	13.8 g
Width	6 mm

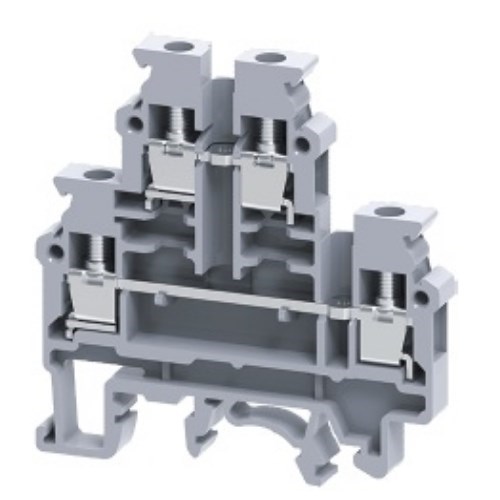

Connectwell CDL4UN Double Level Terminal Block Screw Clamp Terminal Polyamide 0.2-4sq-mm 800V 32A Grey
