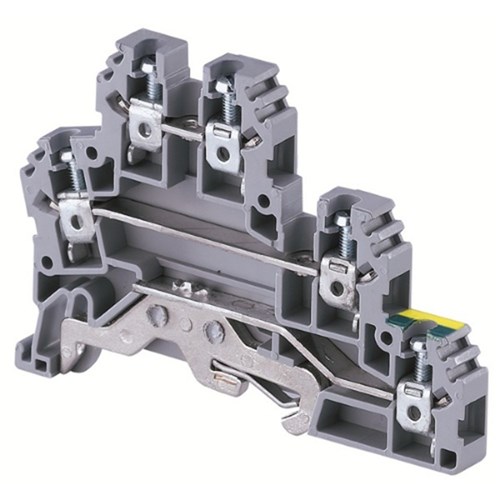

Connectwell CDLG2.5 Double Level Terminal Block Screw Clamp Terminal Double Level Plus 0.2-2.5sq-mm 500V 24A Grey

Product Code: CDLG2.5

1

Specifications

Product Type	Terminal Block
Brand	CONNECTWELL
Cable Cross Section	0.2-2.5 sq-mm
Colour	Grey
Degree of Pollution	IP3
Driver Type	Screw Driver
Function	Double Level Plus Earthing
Housing Material	Polyamide
Length	71.1 mm
Mounting Type	DIN Rail
Rated Current	24 A
Rated Surge Voltage	8 kV
Rated Voltage	500 V
Screw Size	M2.5
Terminal Type	Screw Clamp
Tightening Torque	0.4 N-m
Width	6 mm
Wire Stripping Length	9 mm

Documents

IPD Product Catalogue V17

CONNECTWELL Datasheet
