Specifications

Product Type	kWh Meter Terminal Block
Brand	CONNECTWELL
Series	CDS6U
Application	Measuring, control and regulatory circuits with associated instrument transformers
Function	Sliding Disconnect and Test
Rated Current	41 A
Rated Voltage	800 V
Terminal Type	Sliding Disconnect and Test
Cable Cross Section	0.2–6 mm²
Colour	Grey
Material	Polyamide
Mounting	DIN Rail
Tightening Torque	0.8 Nm
Depth	82 mm

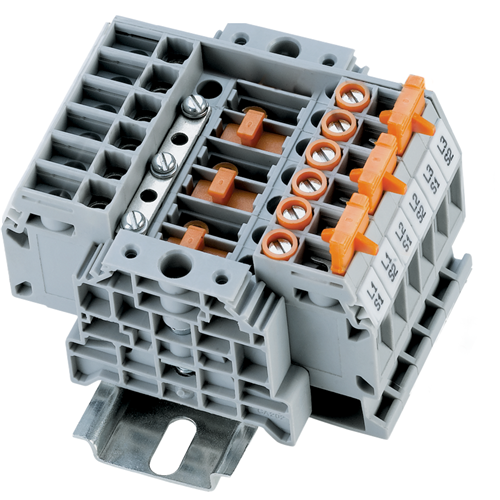

Connectwell CDS6U-3PCT kWh Meter Terminal Block Sliding Disconnect and Test Terminal Polyamide 0.2-6sq-mm 800V Grey
