Specifications

Product Type	Fuse Terminal Block
Brand	CONNECTWELL
Series	CF
Application	Electrical and control circuits requiring fuse protection
Function	Single Level Fuse
Rated Current	6.3 A
Rated Voltage	800 V
Terminal Type	Screw Clamp Terminal
Cable Cross Section	0.2–4 mm²
Colour	Grey
Material	Polyamide
Mounting	DIN 32/DIN 35/DIN 35-15 Rail
Tightening Torque	0.5 Nm
Depth	57 mm
Height	50.3 mm
Weight	14.7 g
Width	8 mm

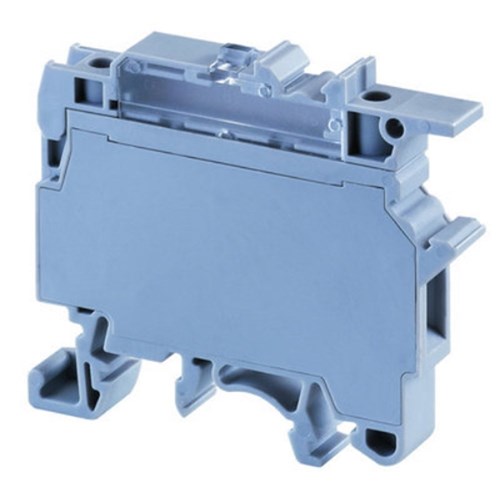

Connectwell CF4U Single Level Fuse Terminal Block Screw Clamp Terminal Single Level Fuse 0.2-4sq-mm 800V 6.3A Grey
