Specifications

Product Type	Disconnect and Test Terminal Block
Brand	CONNECTWELL
Cable Cross Section	0.2-4 sq-mm
Colour	Grey
Degree of Pollution	IP3
Function	Knife Type Disconnect and Test
Housing Material	Polyamide
Length	58.5 mm
Mounting Type	DIN Rail
Rated Current	28 A
Rated Surge Voltage	8 kV
Rated Voltage	1000 V
Screw Size	M3
Standards and Approvals	CE, cCSAus
Terminal Type	Screw Clamp
Tightening Torque	0.5 N-m
Width	6 mm
Wire Stripping Length	8 mm

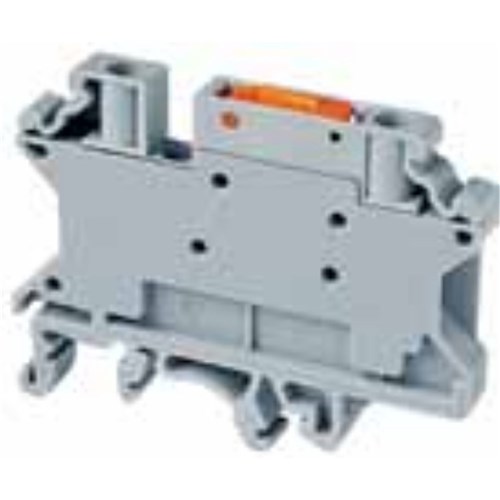

Connectwell CKT4SP Disconnect Block Screw Clamp Terminal Knife Disconnect 0.2-4sq-mm 1000V 28A Grey
