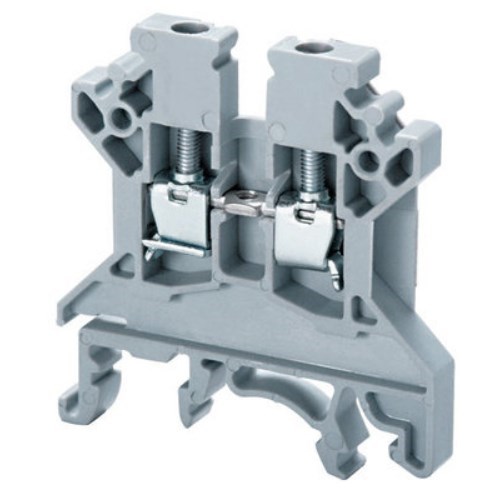

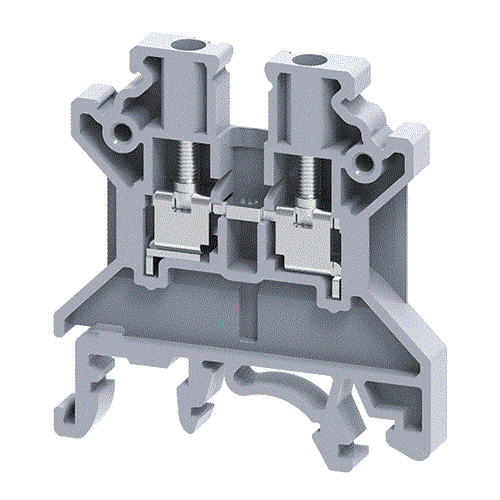

Connectwell CTS2.5UN Terminal Block Screw Clamp Terminal Polyamide 0.2-16sq-mm 1000V 24A Grey

Product Code: CTS2.5UN

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Feed Through Terminal Block
Brand CONNECTWELL
Series CTS
Application Control, automation, instrumentation and power distribution feed-through wiring
Function Feed Through
Rated Current 24 A
Rated Voltage 1000 V
Terminal Type Screw Clamp Terminal
Cable Cross Section 0.2–2.5 mm²
Colour Grey
Material Polyamide
Mounting DIN 32/DIN 35/DIN 35-15 Rail
Tightening Torque 0.4 Nm
Depth 43 mm
Height 46.2 mm
Weight 6.4 g
Width 5 mm

Documents

IPD Product Catalogue V17
CONNECTWELL Datasheet
