Products

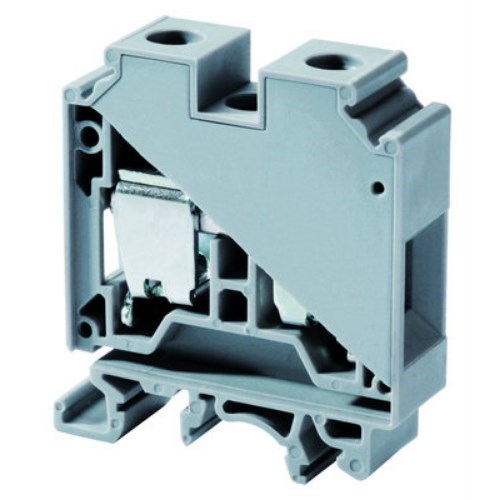

Connectwell CTS35UN Feed Through Terminal Block Screw Clamp Terminal Polyamide 4-35sq-mm 1000V 125A Grey

Product Code: CTS35UN

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Feed Through Terminal Block
Brand CONNECTWELL
Series CTS
Application Control, automation, instrumentation and power distribution feed-through wiring
Function Feed Through
Rated Current 125 A
Rated Voltage 1000 V
Terminal Type Screw Clamp Terminal
Cable Cross Section 4–35 mm²
Colour Grey
Material Polyamide
Mounting DIN 32/DIN 35/DIN 35-15 Rail
Tightening Torque 2.5 Nm
Depth 50.5 mm
Height 59.2 mm
Weight 52.5 g
Width 16 mm

Documents

IPD Product Catalogue V17
CONNECTWELL Datasheet
