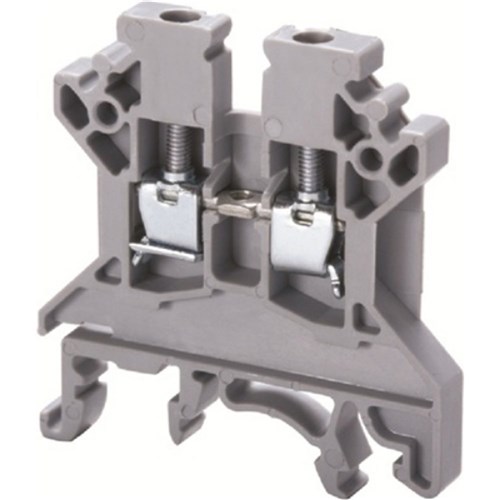

Connectwell CTS4UN Standard Feed Through Block Screw Clamp Feed Through 0.2-4sq-mm 1000V 32A Grey

Product Code: CTS4UN

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Feed Through Terminal Block
Brand CONNECTWELL
Series CTS
Application Control, automation, instrumentation and power distribution feed-through wiring
Function Feed Through
Rated Current 32 A
Rated Voltage 1000 V
Terminal Type Screw Clamp Terminal
Cable Cross Section 0.2–4 mm²
Colour Grey
Material Polyamide
Mounting DIN 32/DIN 35/DIN 35-15 Rail
Tightening Torque 0.5 Nm
Depth 43 mm
Height 46.2 mm
Weight 7.5 g
Width 6 mm
