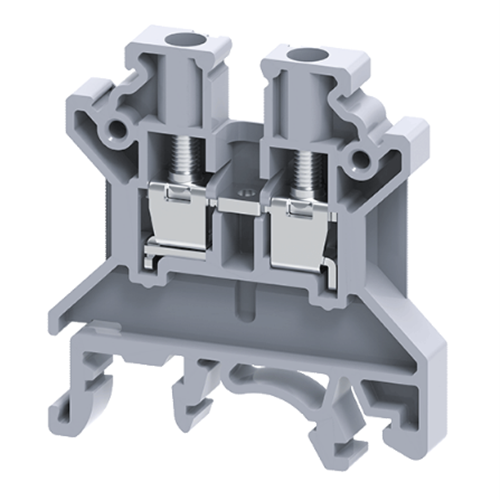

Connectwell CTS4UNG Standard Feed Through Terminal Block Screw Clamp Terminal Polyamide 0.2-4sq-mm 1000VAC/DC 32A Green

Product Code: CTS4UNG

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Feed Through Terminal Block
Brand CONNECTWELL
Cable Cross Section 0.2-4 sq-mm
Colour Green
Degree of Pollution IP3
Housing Material Polyamide
Length 43 mm
Material Polyamide
Mode of Operation Feed Through
Mounting Type DIN 32, DIN 35
Operator Type Screw Driver
Rated Current 32 A
Rated Surge Voltage 8 kV
Rated Voltage 1000 VAC/VDC
Terminal Type Screw Clamp
Tightening Torque 0.5 N-m
Width 6 mm

Documents

IPD Product Catalogue V17
CONNECTWELL Datasheet
