Specifications

Product Type	Feed Through Terminal Block
Brand	CONNECTWELL
Cable Cross Section	0.2-4 sq-mm
Colour	Grey
Connecting Capacity	Conductor Cross Section Stranded 0.2-4 sq-mm, Conductor Cross Section Stranded with Ferrule/Lug 0.2-4 sq-mm, 2 Conductors with Same Cross Section 0.2-2.5 sq-mm, Conductor Cross Section Solid 0.2-6 sq-mm
Degree of Pollution	IP3
Degree of Protection	IP66
Depth	52 mm
Function	Feed Through
Height	70.8 mm
Housing Material	Polyamide
Length	52 mm
Material	Polyamide
Mounting Type	DIN 32, DIN 35
Operator Type	Screw Driver
Rated Current	32 A
Rated Surge Voltage	8 kV
Rated Voltage	1000 V
Screw Size	M3
Terminal Type	Screw Clamp
Tightening Torque	0.5 N-m
Width	6 mm
Wire Stripping Length	12 mm

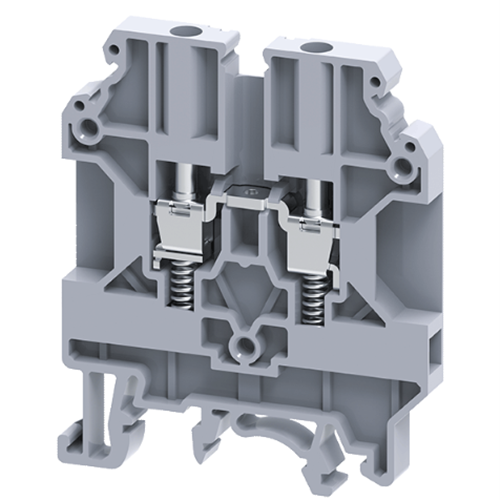

Connectwell CTS4USC Spring Loaded Feed Through Block Screw Clamp Feed Through 0.2-4sq-mm 1000V 32A Grey
