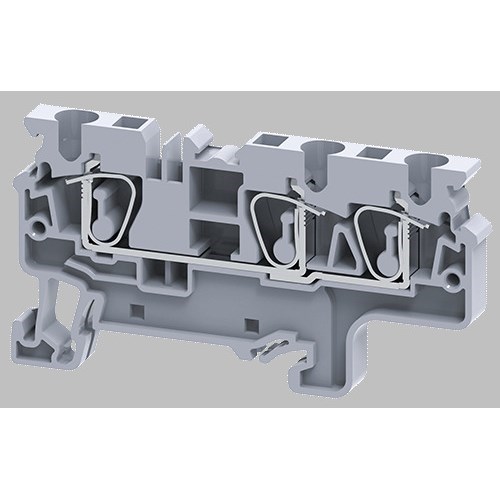

Connectwell CX4/3 Feed Through Spring Clamp Block Spring Clamp Feed Through 0.2-4sq-mm 1000V 32A Grey

Product Code: CX4/3

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Feed Through Terminal Block
Brand CONNECTWELL
Cable Cross Section 0.2-4 sq-mm
Colour Grey
Degree of Pollution IP3
Function Feed Through
Housing Material Polyamide
Length 70.5 mm
Mounting Type DIN 35
Operator Type Screw Driver
Rated Current 32 A
Rated Surge Voltage 8 kV
Rated Voltage 1000 V
Standards and Approvals CE, CSA, cCSAus
Terminal Type Spring Clamp
Width 6 mm
Wire Stripping Length 10 mm

Documents

IPD Product Catalogue V17
CONNECTWELL Datasheet
CONNECTWELL Datasheet
