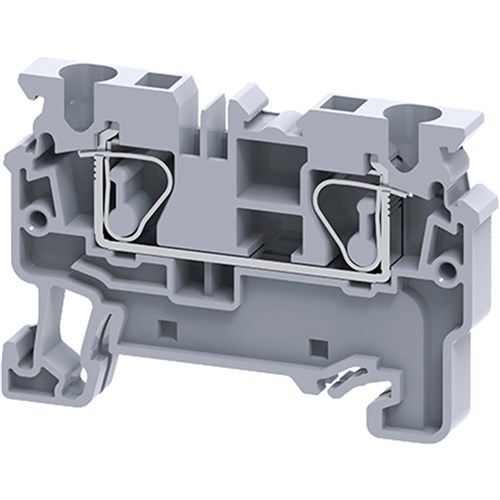

Connectwell CX4 Feed Through Compact Block Spring Clamp Feed Through 0.2-4sq-mm 1000V 32A Grey

Product Code: CX4

1

Specifications

Product Type	Feed Through Terminal Block
Brand	CONNECTWELL
Cable Cross Section	0.2-4 sq-mm
Colour	Grey
Degree of Pollution	IP3
Function	Feed Through
Housing Material	Polyamide
Length	54.8 mm
Mounting Type	DIN 35
Operator Type	Screw Driver
Rated Current	32 A
Rated Surge Voltage	8 kV
Rated Voltage	1000 V
Standards and Approvals	CE, cRUus, cCSAus
Terminal Type	Spring Clamp
Width	6 mm
Wire Stripping Length	10 mm

Documents

IPD Product Catalogue V17

CONNECTWELL Datasheet
