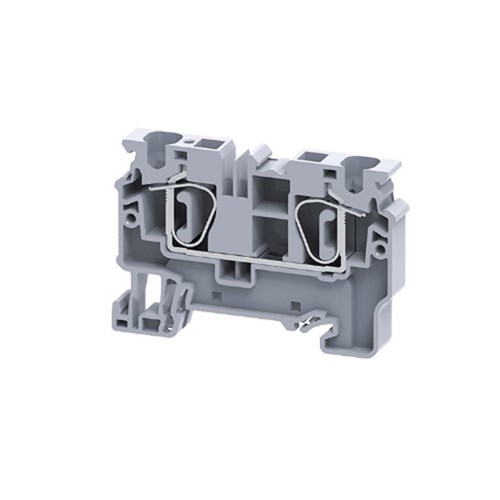

Connectwell CX6 Feed Through Spring Clamp Block Spring Clamp Feed Through 0.2-6sq-mm 1000V 41A Grey

Product Code: CX6

1

Specifications

Product Type	Feed Through Terminal Block
Brand	CONNECTWELL
Cable Cross Section	0.2-6 sq-mm
Colour	Grey
Degree of Pollution	IP3
Function	Feed Through
Housing Material	Polyamide
Length	62.1 mm
Mounting Type	DIN 35
Operator Type	Screw Driver
Rated Current	41 A
Rated Surge Voltage	8 kV
Rated Voltage	1000 V
Standards and Approvals	CE, cRUus, cCSAus
Terminal Type	Spring Clamp
Width	8 mm
Wire Stripping Length	14 mm

Documents

IPD Product Catalogue V17

CONNECTWELL Datasheet
