Specifications

Product Type	Base part
Brand	DEHN
Series	BLITZDUCTOR SP
Application	Base part as feed-through terminal for BLITZDUCTOR XT/SP/XTU modules. Signal disconnection when the module is removed
Connection Type	Screw
Rated Cross-Section	0.08-4 sq-mm Solid, 0.08-2.5 sq-mm Flexible
Colour	Yellow
Material	Polyamide
Mounting Method	35 mm DIN rails acc. to EN 60715
Mounting Type	35 mm DIN Rail
Terminal Size	0.08 to 2.5 mm2
Tightening Torque	0.4 N-m
Depth	50 mm
Height	90 mm
Weight	0.045 kg
Width	12 mm
Operating Temperature	-40°C to 80°C
IP Rating	IP20
Standards and Approvals	UL 497B, CSA

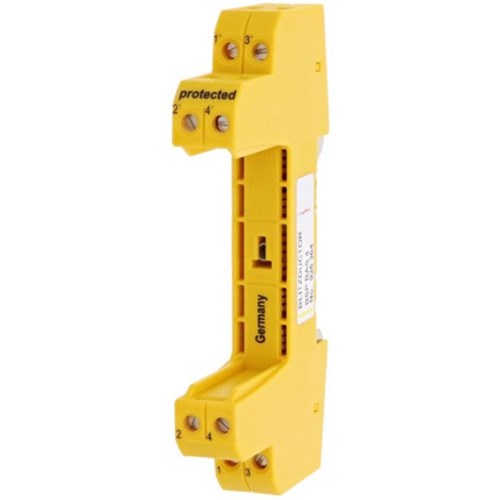

DEHN BSPBAS4 Yellow Line Base 4-P Screw 35mm DIN Rail Mount 12mm W 50mm D 90mm H Polyamide Yellow IP20
