Specifications

Product Type	Surge arrester
Brand	DEHN
Series	BLITZDUCTOR VT
Application	Protection to programmable logic controls/PLCs, 2 pole, installation width 1.5 TE
Rated Cross-Section	0.5-6 sq-mm Solid, 0.5-4 sq-mm Flexible
Rated Current	1 kA (Per Line), 2 kA (Total)
Rated Voltage	35 VDC
Nominal Voltage	24 V
SPD Type	Type 3
Voltage Protection Level Up	50 V
Nominal Current	10 A
Nominal Discharge Current Inom (8/20µs)	2 kA
Max. Continuous Operating Voltage (DC)	35 V
Colour	Yellow
Material	Thermoplastic
Mounting Method	35 mm DIN rail acc. to EN 60715
Mounting Type	35 mm DIN Rail
Terminal Size	0.5 to 4.0 mm2
Tightening Torque	0.8 N-m
Depth	65 mm
Height	90 mm
Weight	0.097 kg
Width	27 mm
Operating Temperature	-40°C to 80°C
IP Rating	IP20
Standards and Approvals	IEC 61643-21, EN 61643-21

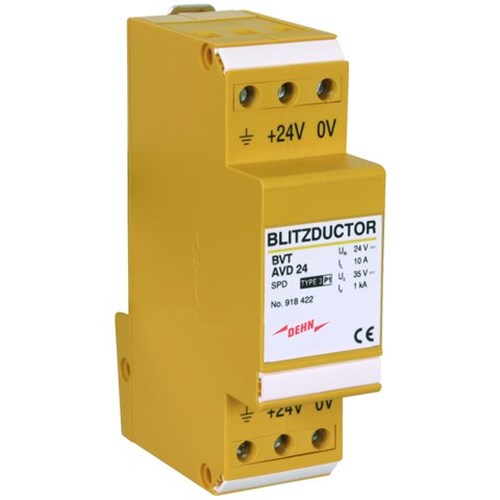

DEHN BVTAVD24 Surge Arrester 1kA 2kA 35VDC 35mm DIN Rail IP20
