Specifications

Product Type	Combined Arrester
Brand	DEHN
Series	DEHNcombo
Application	Combined lightning current and surge arrester for use in photovoltaic power supply systems up to 1500 V d.c.; with remote signalling contact.
Lightning Impulse Current Iimp (10/350µs)	6.25 kA
Max. Continuous Operating Voltage (AC/DC)	<= 1500 V
Rated Cross-Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Suitable For	Up to 1500 VDC PV Systems
Rated Current	40 kA
Rated Short Circuit Current	10 kA
Response Time	<= 25 ns
Voltage Protection Level Up	< 4.5 kV
Max. Discharge Current Imax (8/20µs)	40 kA
Short Circuit Current Rating	10 kA
Alarm Contact	Changeover contact
Nominal Discharge Current Inom (8/20µs)	20 kA
Material	Thermoplastic
Mounting Method	35 mm DIN rails acc. to EN 60715
Mounting Type	35 mm DIN Rail
Terminal Size	1.5 to 35 mm2
Depth	73 mm
Height	90 mm
Weight	564 g
Width	72 mm
No. of Modules Width	4
Operating Temperature	-40 to 80 degC
IP Rating	IP20
Standards and Approvals	KEMA, UL

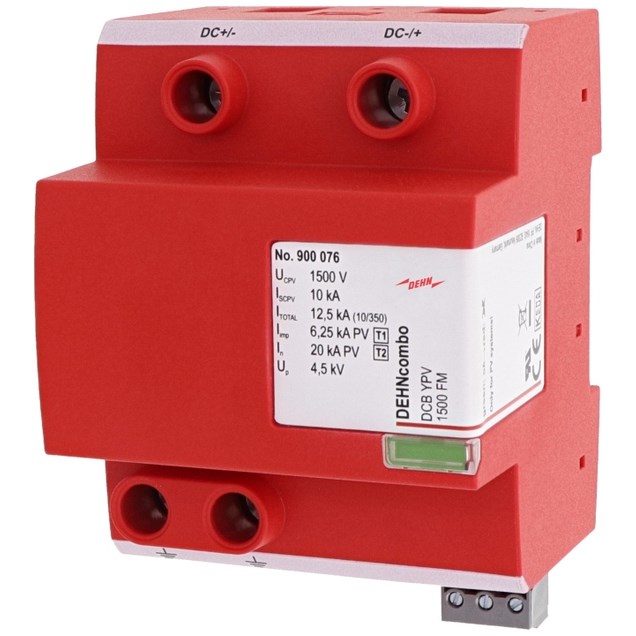

DEHN DCBYPV1500FM Combined Arrester 40kA 35mm DIN Rail Mount 72mm W 73mm D 90mm H Thermoplastic IP20
