Specifications

Product Type	Surge arrester
Brand	DEHN
Series	DEHNcord
Application	For protecting low-voltage consumer installations against surges
Max. Backup Fuse	25 A gG
Max. Continuous Operating Voltage (AC/DC)	275 V AC
Rated Cross-Section	1.5 sq-mm
Breaking Capacity	25 A
Communication Ports	1
Rated Current	5 kA
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Response Time	<= 25 ns (L-N)
SPD Type	Type 2, Class II
Voltage Protection Level Up	1.5 kV
Max. Discharge Current Imax (8/20µs)	10 kA
Short Circuit Current Rating	25 kA
Nominal Discharge Current Inom (8/20µs)	5 kA
No. of Poles	1
Colour	Red
Material	Thermoplastic
Depth	20.6 mm
Height	50 mm
Weight	46 g
Width	49 mm
Operating Temperature	-40°C to 80°C
IP Rating	IP20
Standards and Approvals	KEMA

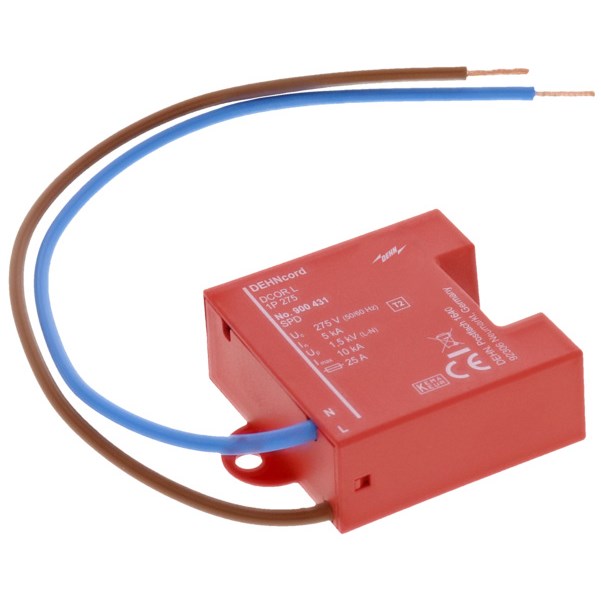

DEHN DCORL1P275 Surge Arrester 1-P 5kA 230VAC Thermoplastic Red IP20
