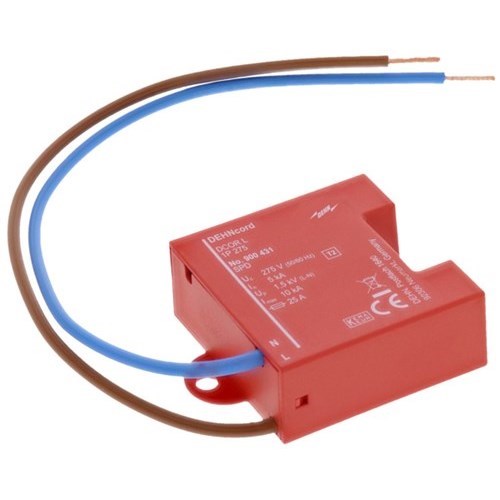

DEHN DCORL1P320 Surge Arrester 1-P 5kA 230/277VAC Thermoplastic Red IP20

Product Code: DCORL1P320

1

Specifications

Product Type	Surge Arrester
Brand	DEHN
Colour	Red
Cross Section	1.5 sq-mm
Degree of Protection	IP20
Depth	20.6 mm
Height	50 mm
Interrupt Rating	25 A
Material	Thermoplastic
Number of Poles	1
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Current	5 kA
Rated Short Circuit Current	25 kA
Rated Voltage	230/277 VAC
Response Time	<= 25 ns (L-N)
SPD Class	Type 2, Class II
Standards and Approvals	KEMA
Voltage Protection Level	<=1.75 kV (L-N)
Weight	48 g
Width	49 mm
