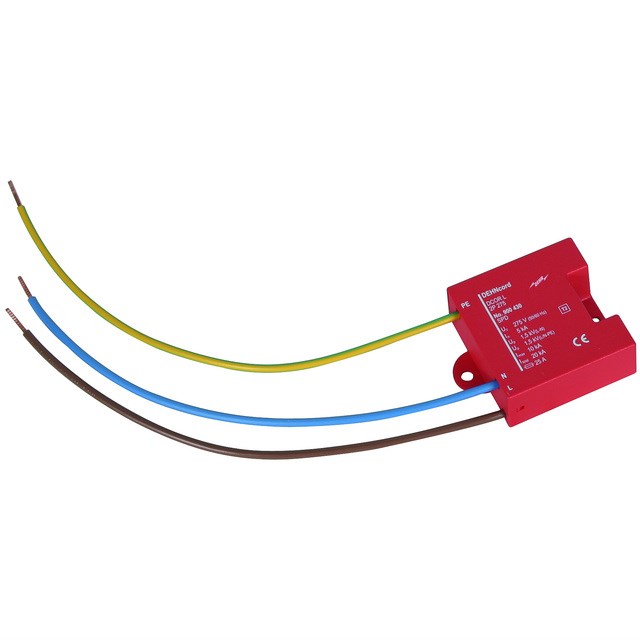

DEHN DCORL2P275 Surge Arrester 2-P 5kA 230VAC Thermoplastic Red IP20

Product Code: DCORL2P275

1

Specifications

Product Type	Surge Arrester
Brand	DEHN
Rated Cross-Section	1.5 sq-mm
Breaking Capacity	25 A
Communication Ports	1
Rated Current	5 kA
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Short Circuit Capacity	100 kArms
Response Time	<= 25 ns, <= 100 ns (L/N-PE)
SPD Type	Type 2, Class II
Voltage Protection Level Up	<=1.5 kV (L-N), <=1 kV (L-N), <=0.85 kV (L-N)
Colour	Red
Material	Thermoplastic
Depth	20.6 mm
Height	50 mm
Weight	59 g
Width	49 mm
Operating Temperature	-40 to 80 deg C
IP Rating	IP20
Standards and Approvals	KEMA
