Specifications

Product Type	Surge arrester
Brand	DEHN
Series	DEHNcord
Application	For protecting low-voltage consumer installations against surges
Max. Backup Fuse	B 16 A
Max. Continuous Operating Voltage (AC/DC)	255 V AC, 275 V AC
Rated Cross-Section	1.5 sq-mm
Communication Ports	1
Rated Current	5 kA
Rated Short Circuit Current	1 kA
Rated Voltage	230 VAC
Nominal Voltage	230 V AC
Response Time	<= 25 ns, <= 100 ns (L/N-PE)
SPD Type	Type 2, Class II
Voltage Protection Level Up	1.5 kV
Max. Discharge Current Imax (8/20µs)	10 kA
Short Circuit Current Rating	1 kA
Nominal Discharge Current Inom (8/20µs)	5 kA
No. of Poles	3
Material	Thermoplastic
Depth	20.6 mm
Height	50 mm
Weight	130 g
Width	49 mm
Operating Temperature	-40°C to 80°C
IP Rating	IP65

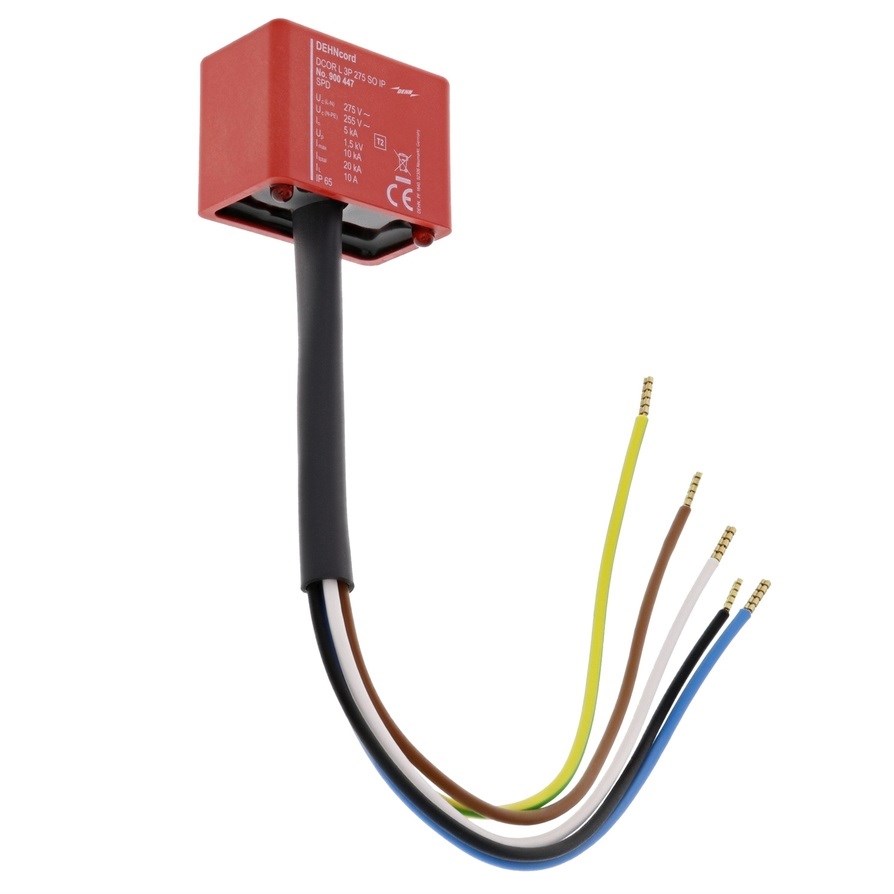

DEHN DCORL3P275SOIP Type-2 Surge Arrester With Connecting Cable 5kA 230VAC Thermoplastic IP65
