Specifications

Product Type	Type-2 Surge Arrester
Brand	DEHN
Cross Section	1.5 sq-mm
Degree of Protection	IP20
Depth	19.4 mm
Height	30.3 mm
Material	Thermoplastic
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Current	5 kA
Rated Short Circuit Current	1 kA
Rated Voltage	230 VAC
Response Time	<= 25 ns, <= 100 ns (L/N-PE)
SPD Class	Type 2, Class II
Suitable For Use With	Electrical Installation Systems
Voltage Protection Level	<=1.5 kV (L-N), <=1 kV (L-N), <=0.85 kV (L-N)
Weight	58 g
Width	67 mm

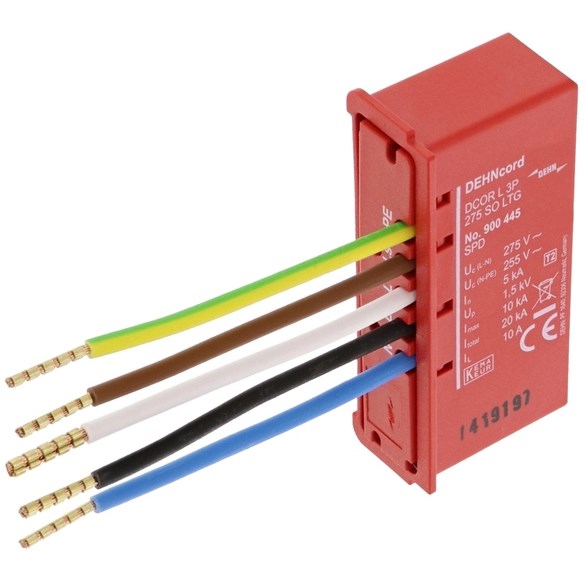

DEHN DCORL3P275SOLTG Type-2 Surge Arrester 5kA 230VAC Thermoplastic IP20
