Specifications

Product Type	Type-2 M-Surge Arrester With TNS System Guard
Brand	DEHN
Rated Cross-Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Breaking Capacity	125 A
Communication Ports	1
Rated Current	15 kA
Rated Short Circuit Current	50 kA
Rated Voltage	120/240 V
Response Time	<= 25 ns
SPD Type	Type 2, Class II
Voltage Protection Level Up	<=0.7 kV
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Depth	66 mm
Height	90 mm
Weight	306 g
Width	54 mm
Operating Temperature	-40 to 80 deg C
IP Rating	IP20
Standards and Approvals	KEMA, UL

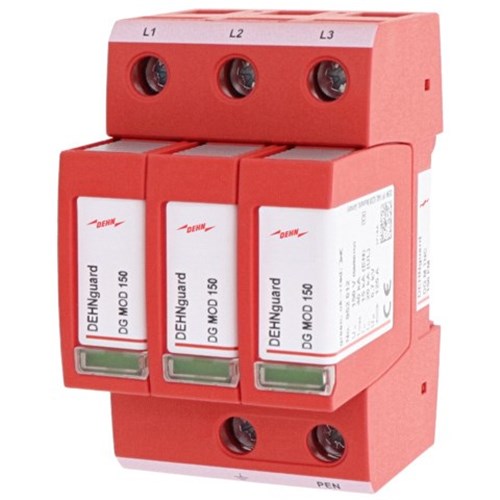

DEHN DGMTNC150FM Type-2 M-Surge Arrester With TNS System Guard 3-P 15kA 120/240V 35mm DIN Rail IP20
