Specifications

Product Type	Surge Arrester
Brand	DEHN
Series	DEHNguard modular YPV FM
Application	Mehrpoliger, modularer Überspannungs-Ableiter für PV-Anlagen mit Fernmeldekontakt für Überwachungseinrichtung (potentialfreier Wechsler).
Max. Continuous Operating Voltage (AC/DC)	1500 V
Rated Cross-Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Suitable For	PV Systems
Communication Ports	1
Rated Current	40 kA (L-N, N-PE)
Rated Short Circuit Current	10 kA
Response Time	<= 25 ns
SPD Type	Type 2, Class II
Voltage Protection Level Up	<= 5 kV
Max. Discharge Current Imax (8/20µs)	40 kA
Short Circuit Current Rating	10 kA
Alarm Contact	Wechsler
Nominal Discharge Current Inom (8/20µs)	15 kA
Material	Thermoplastic
Mounting Method	35 mm Hutschiene nach EN 60715
Mounting Type	35 mm DIN Rail
Terminal Size	1.5 to 35 mm2
Depth	66 mm
Height	90 mm
Weight	350 g
Width	54 mm
No. of Modules Width	3
Operating Temperature	-40 to 80 degC
IP Rating	IP20
Standards and Approvals	UL, KEMA

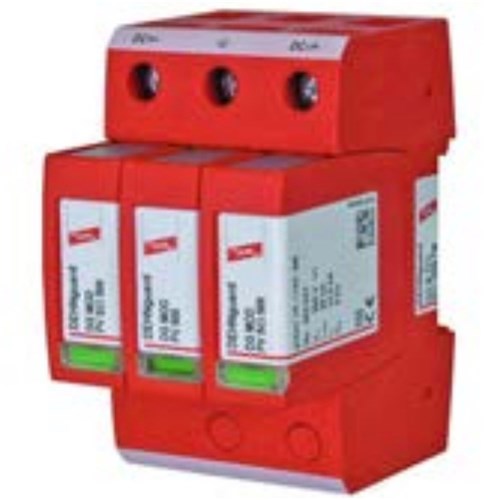

DEHN DGMYPV1500FM Type-2 Surge Arrester 40kA 35mm DIN Rail Thermoplastic IP20
